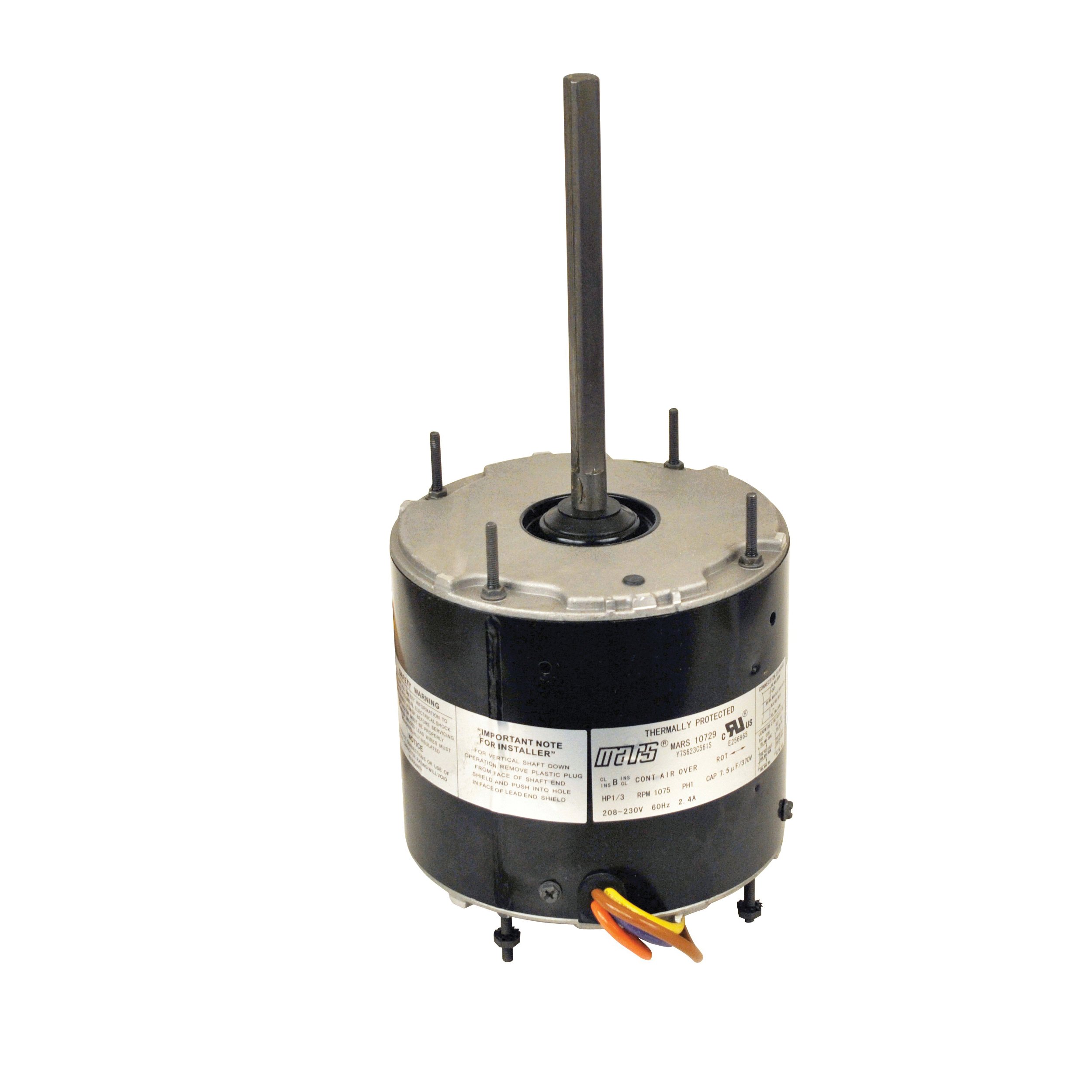

Azure® by Mars® 10728 100 Condenser Fan Motor, Totally Enclosed Air Over Enclosure, 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, All Angle Mount

Azure® by Mars® Condenser Fan Motor, Series: 100, Condenser Fan Motors Application, 1/4 hp, 208 to 230 VAC, 1.8 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, Sleeve Bearing, All Angle Mounting, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions

---

More Info

Mars® up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
