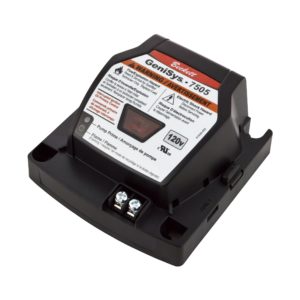

BKT7505B1500U | Beckett®
In Stock!
▼
| BRN | Stock |
|---|---|
ALLIED™ Burner Control, Primary, 15 s
Replaces Honeywell R7184B1016, R7184B1024, and R7184B1032.
Details
Beckett
Beckett®
7505B1500U
-
Electrical Ratings:
Inputs:
Voltage: 102 to 132 Vac
Current: 150 mA plus burner motor, igniter, and valve loads
Frequency: 60 Hz
Outputs:
Motor: 120 Vac, 10 full load amps (FLA*), 60 locked rotor amps
(LRA)
Note - Reduce motor FLA rating by igniter current
Igniter: 120 Vac, 3 A @ 0.7 PF min
Solenoid Valve: 120 Vac, 1 A @ 0.7 PF min
Thermostat Anticipator Current: 0.1 A
Thermostat Voltage: 24 Vac
Application Ratings
Oil Burner Input: < 20gph
Control Programming: UL372 Group 2
Features & Benefits:
Water Resistant
Thermostat and boiler control compatible
Customizable pre-time and post-time
Three status lights for system monitoring and diagnostics
Welded relay protection with redundant motor relays
Limited reset and limited recycle
Sleek, modern design
Technician Pump Prime mode
5-Year Warranty
7505b replaces Honeywell R7184B
Two communication ports for adding alarm contacts, programming display, and/or future
