Mersen Amp-Trap 2000® AJT20N Low Voltage Time Delay Power Fuse, 20 A, 600 VAC/500 VDC, 200 kA AC/100 kA DC Interrupt, J Class

Ferraz Shawmut Amp-Trap 2000® Power Fuse, Low Voltage Time Delay, Series: AJT, Non-Indicating, Non-Rejection, 20 A, 600 VAC/500 VDC, 200 kA AC/100 kA DC Interrupt, Class: J, 50/60 Hz Frequency, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Glass Melamine Laminate, 13/16 in Dia x 2-1/4 in L Body

---

More Info

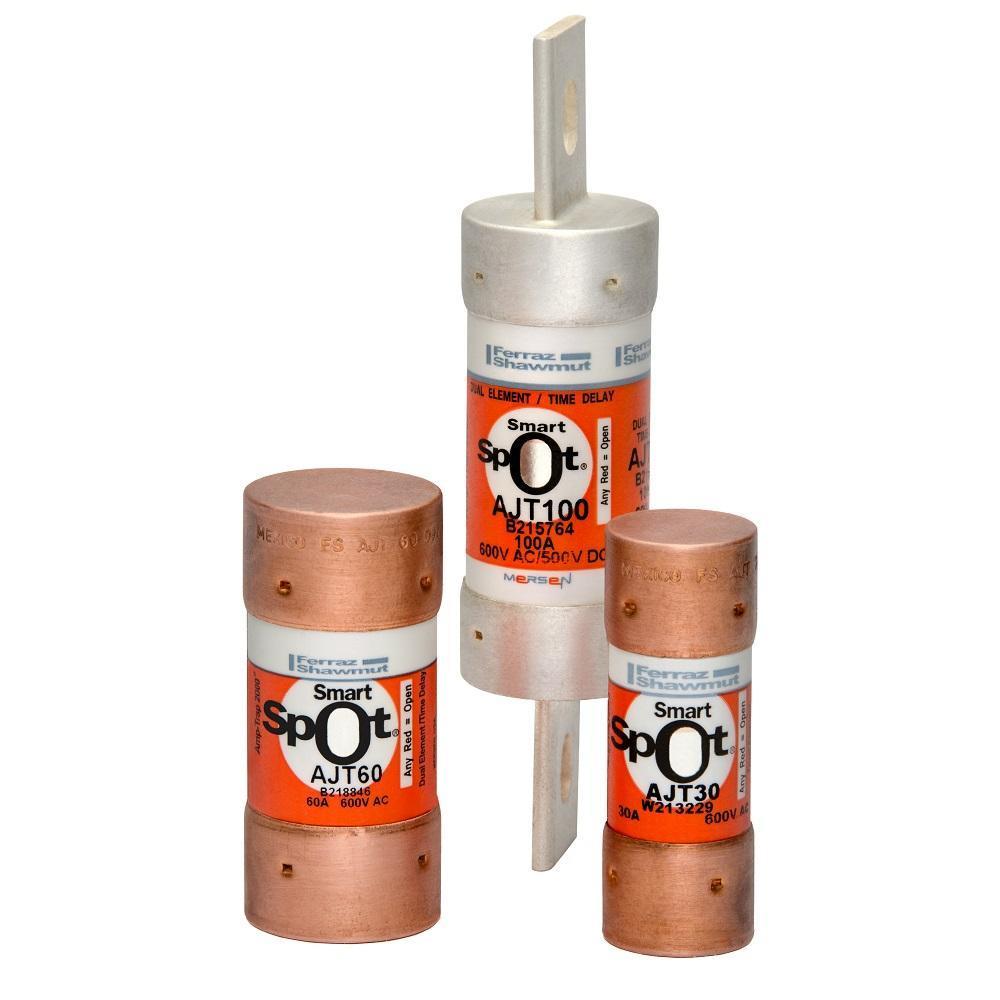

Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot® visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600 VAC Class RK fuses. AJT's time delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
