QOBDA34080Y | Schneider Electric






In Stock!
▼
| BRN | Stock |
|---|---|

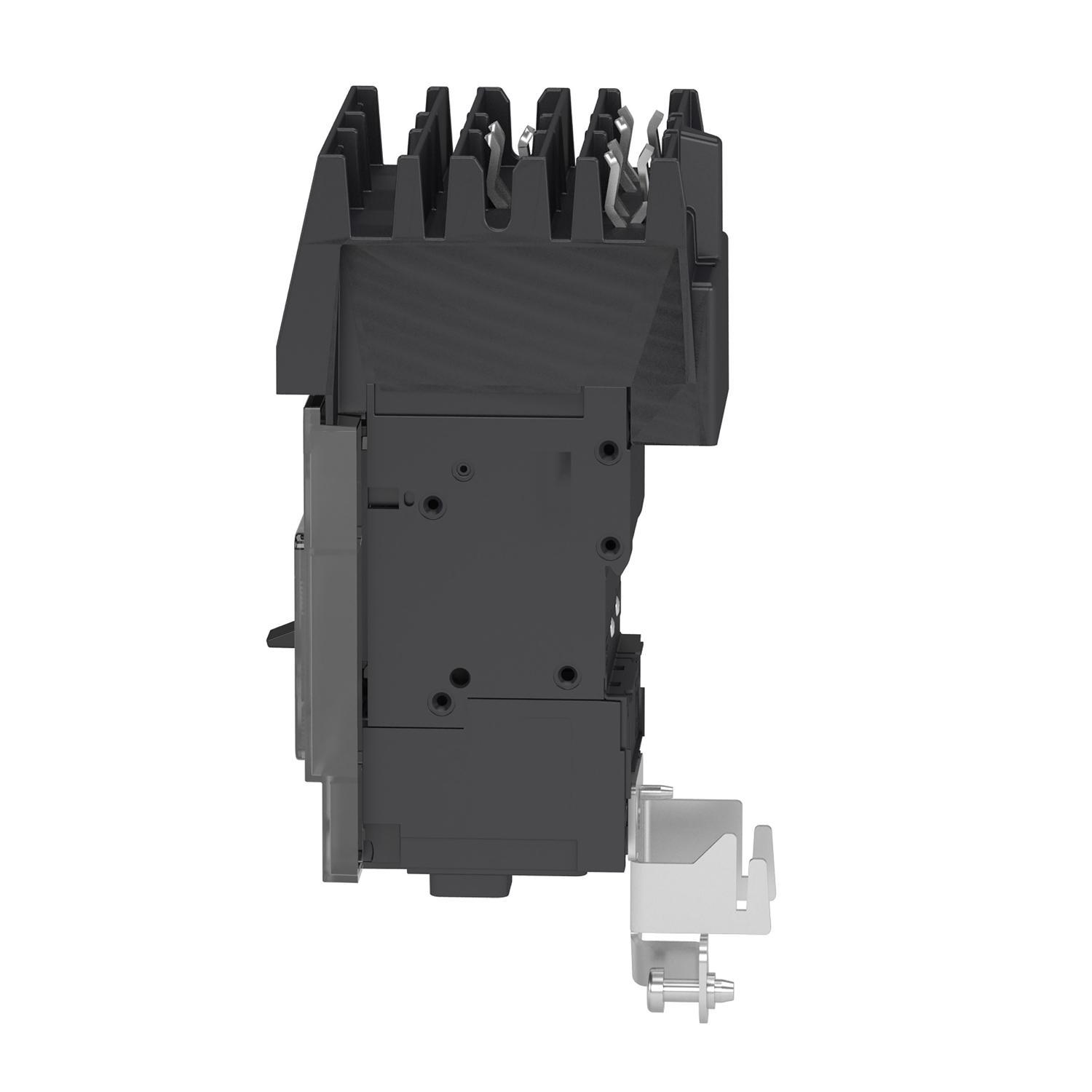

Schneider Electric I-Line PowerPact B BDA34080Y BD 080 Type BDA Molded Case Circuit Breaker, 480Y/277 VAC/250 VDC, 80 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 80A, 3 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
BREAKER BDA 3P 80A 480/277V
Details
Schneider Electric
Schneider Electric
BDA34080Y
Attributes
BDA
80 A
480/277 V
3 Pole(s)
I-Line
18 kAIC
Thermal/Magnetic
Standard
