Littelfuse® Symcom PumpSaver® Intrinsically Safe Switch, 5-Channel, 5 W Power, 50/60 Hz Frequency, DIN Rail/Surface Mounting, Finger Safe Terminal, -40 to 158 deg F, 5.025 in W x 2.35 in D x 3.703 in H Dimensions

Littelfuse® Symcom PumpSaver® Intrinsically Safe Switch, 5-Channel, 5 W Power, 50/60 Hz Frequency, DIN Rail/Surface Mounting, Finger Safe Terminal, -40 to 158 deg F, 5.025 in W x 2.35 in D x 3.703 in H Dimensions

---

More Info

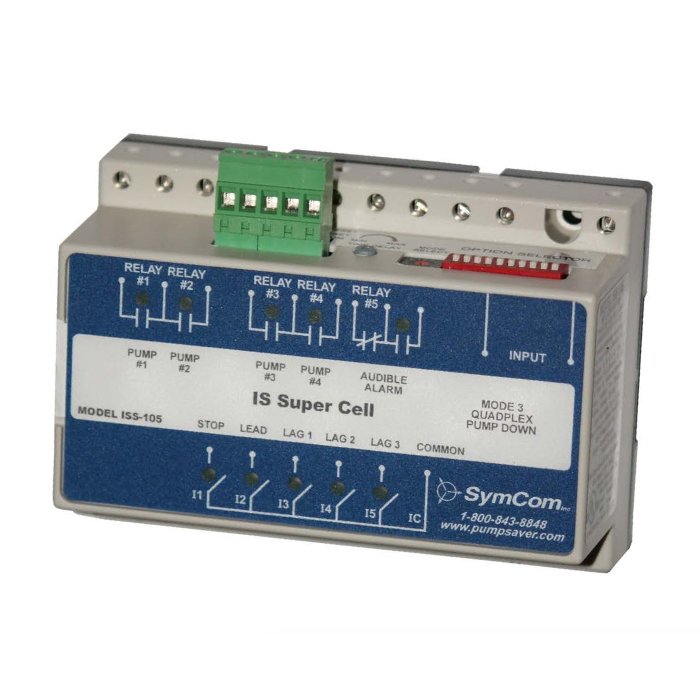

The ISS-105 is a ""smart"" 5-channel intrinsically safe relay and pump controller. The ISS-105 can be configured for a wide variety of applications including alternating or non-alternating duplex, duplex separate pump stop (SPS), triplex and quadplex applications. It can be set up for pump up or pump down applications or can be used as a five-channel relay. The ISS-105 has a long list of features that are needed for multiple pump applications. The ISS-105 can indicate low, high and out of sequence alarms. If an out of sequence alarm occurs, the skipped pump(s) will be started as intended. The model ISS-105 can be set upto do non-alternating control, alternating control and alternating control with one non-alternating pump. The non-alternating pump is intended for use with an emergency or jockey pump. The ISS-105 can start an emergency pump once every 50 cycles to keep it working freely. Using the built-in DIP switches, individual pumps can be disabled when taken out of service for repair or maintenance.
